Elitech ECB-LS230 Three-phase Split Iron Electric Control Panel With Refrigeration, Defrost, Fan Output, With Temperature and Evaporator Defrost Sensor, 380VAC WiFi Network, RS-485 & Bluetooth
Elitech ECB-LS230 Three-phase Split Iron Electric Control Panel With Refrigeration, Defrost, Fan Output, With Temperature and Evaporator Defrost Sensor, 380VAC WiFi Network, RS-485 & Bluetooth
Elitech ECB-LS230 electric control panel is a split iron shell electric control box with a three-phase power supply, has WiFi (2.4GHz) network function, 485 interface and Bluetooth communication mode. There are multiple options for compressor and defrost output, defrost output, from 5HP to 30HP, to meet different refrigeration needs and application scenarios. With ultra-high temperature alarm, ultra-low temperature alarm, sensor fault alarm and time display functions. It also has Fahrenheit Celsius conversion function.

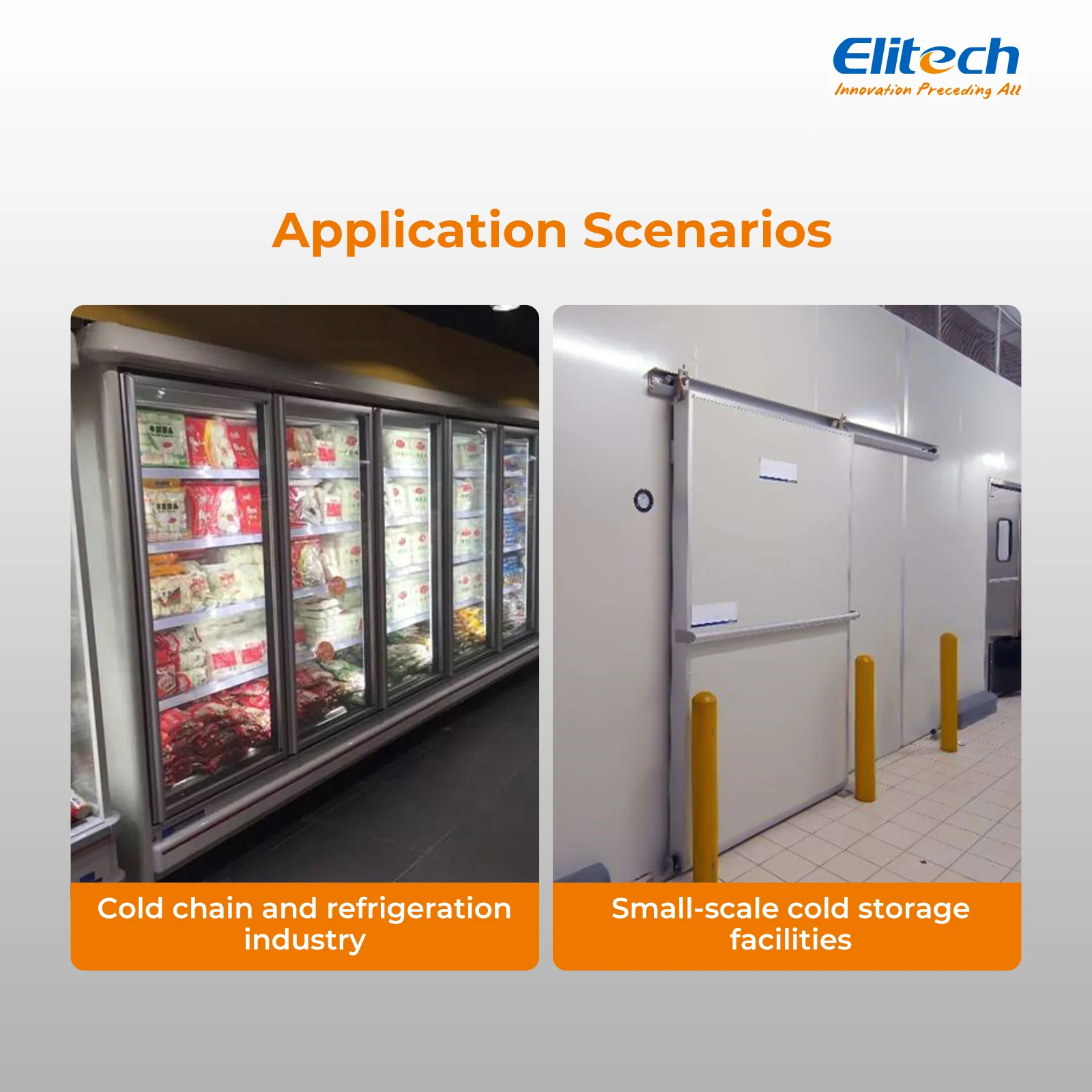

Elitech ECB-LS230 electric control panel is suitable for temperature control of commercial and industrial refrigeration, hotels, household freezers, refrigerators, small and medium cold storage, refrigeration devices.
Three-way signal input: 2-way temperature probe sensors, defrost probe sensor.
Three-way control output: compressor, defrosting, fan.
Elitech ECB-LS230 Function
| Model | Control Output | Sensor Input | |||
| Compressor | Defrost | Fan | Temperature Sensor (Two-way) | Defrost Sensor | |
| ECB-LS230 (5HP) | 5HP/ 14A | 14A | 7A | √ | √ |
| ECB-LS230 (10HP) | 10HP/ 21A | 21A | 7A | √ | √ |
| ECB-LS230 (15HP) | 15HP/ 28A | 28A | 7A | √ | √ |
| ECB-LS230 (20HP) | 20HP/ 35A | 35A | 7A | √ | √ |
| ECB-LS230 (25HP) | 25HP/ 44A | 44A | 7A | √ | √ |
| ECB-LS230 (30HP) | 30HP/ 56A | 56A | 7A | √ | √ |
Parameter
| Model | ECB-LS230 |
| Power Supply | 380VAC; 50/60HZ |
| Temperature Measurement Range | -49~119℃ |
| Temperature Control Range | -40~119℃ |
| Temperature Measurement Accuracy | ±1℃ (-20~50℃); ±1.5℃ (Others) |
| Resolution | 0.1℃/ 1℉ |
| Contact Capacity (Compressor) | 14A/ 21A/ 28A/ 35A/ 44A/ 56A |
| Contact Capacity (Defrost) | 14A/ 21A/ 28A/ 35A/ 44A/ 56A |
| Contact Capacity (Fan) | 7A |
| Sensor Type | NTC (10KQ/25 °C , B-3435K) |
| Communication | RS-485 + Bluetooth |
| Network | WiFi(2.4GHz) |
Feature
- ℃/ ℉* Fahrenheit and Celsius conversion function

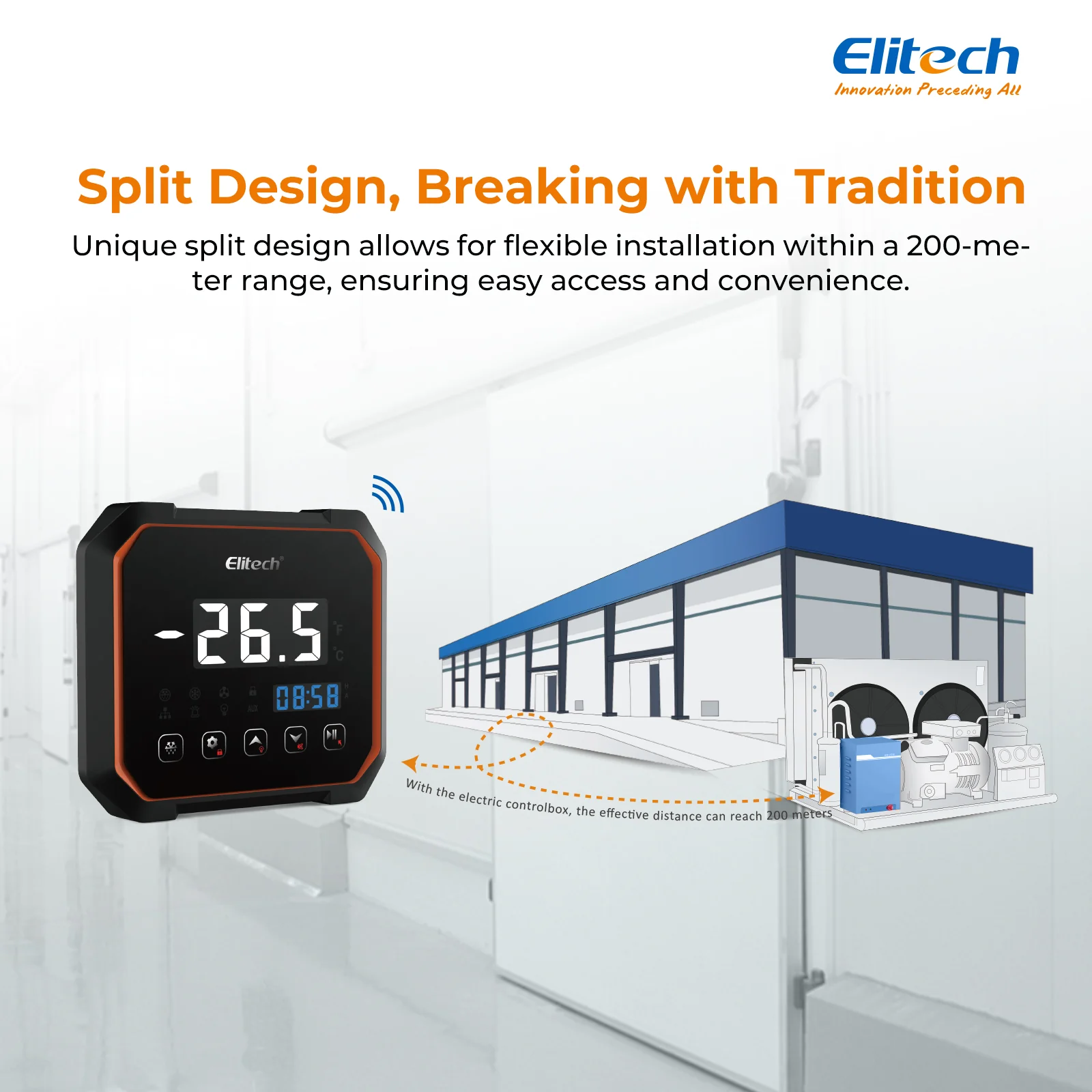

- Split Type, Operation More Convenient* Using a split electric control system, the electric box and the unit are put together, and the hand-operated panel can be flexibly secured according to the actual situation of the cold storage, and the maximum operating distance is 200 meters.
- Split Type, Safer* The hand control panel is separated from the electrical box, strong and weak electricity is separated, and the personnel operation is safer;
- Split Type, Cost-saving* Putting the electrical box and the unit together can greatly save the power line; built-in one-key energy-saving function, you can use the peak and valley points to achieve night defrosting and automatic temperature adjustment
- More Stable* Two temperature probes, one used and one prepared, effectively avoiding the risk caused by the failure of one probe
- Remote Control, More Intelligent* Built-in Bluetooth function, and WiFi networking function at the same time, can view and modify parameters through computers and smart terminals, and real-time cloud storage of cooling data
- Multiple Notification Methods, More Assured* Real-time report of equipment status through SMS, APP, email and other fault over-temperature alarm methods, realizing 24-hour real-time monitoring of cold storage
Elitech ECB-LS230 Split Electric Control Panel User Manual
