Elitech ECS-16 One-Way Output Digital Temperature Controller, Cooling or Heating Mode, Direct Drive Single-phase 1.5HP Compressor, For Beverage Cabinets
Elitech ECS-16 One-Way Output Digital Temperature Controller, Cooling or Heating Mode, Direct Drive Single-phase 1.5HP Compressor, For Beverage Cabinets
Elitech ECS-16 (ECS16) temperature controller is a small, high-precision, easy-to-operate temperature controller thermostat, suitable for temperature control of refrigeration/ heating. The refrigeration relay is a 30A/240V output, which can directly drive a 1.5HP compressor in a single phase. With temperature measurement, temperature display, temperature control, temperature correction, forced defrosting, and sensor fault alarm function. One-touch restoration of original setting values for easy re-adjustment of parameters.
The parameter setting of ECS-16 is divided into the user menu and administrator menu. If you are an equipment company, you can set up the administrator menu parameters. The end-user only sets the user parameter menu, which is convenient for users to operate. The administrator menu has a password protection function to prevent users from misusing settings.

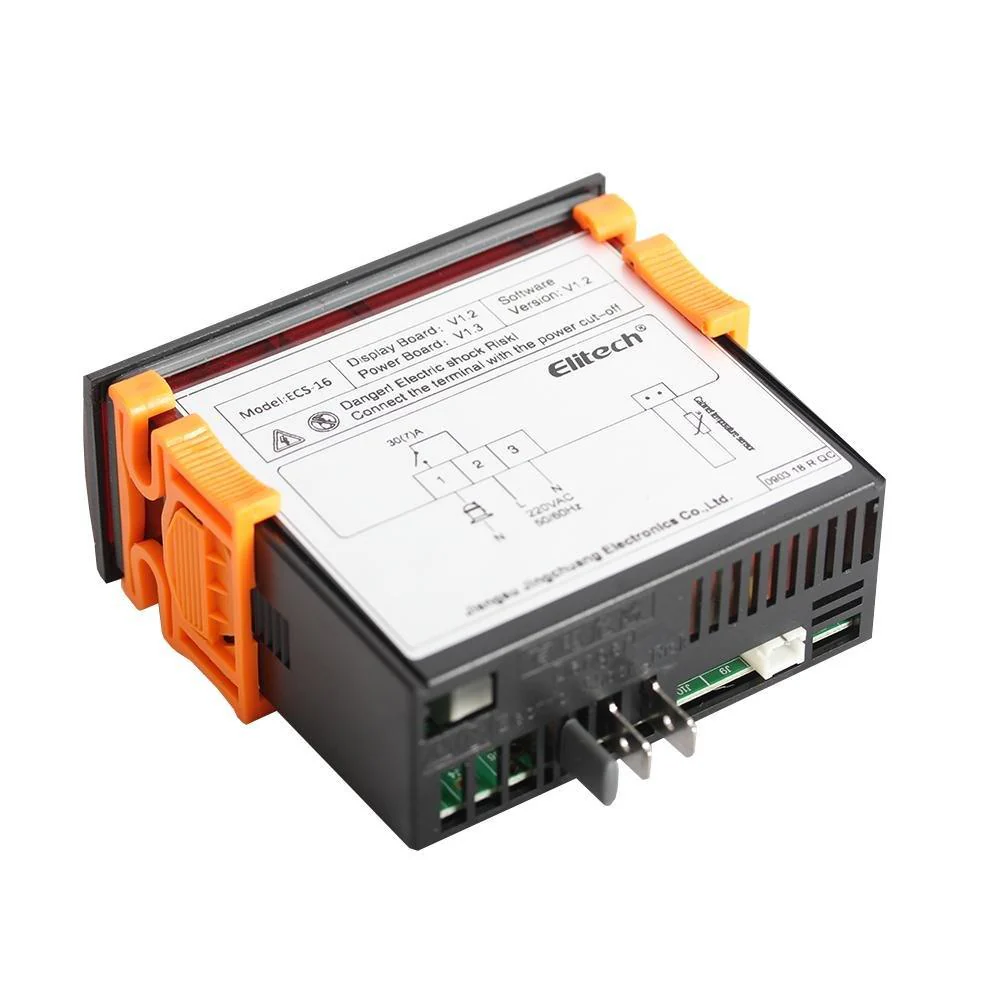

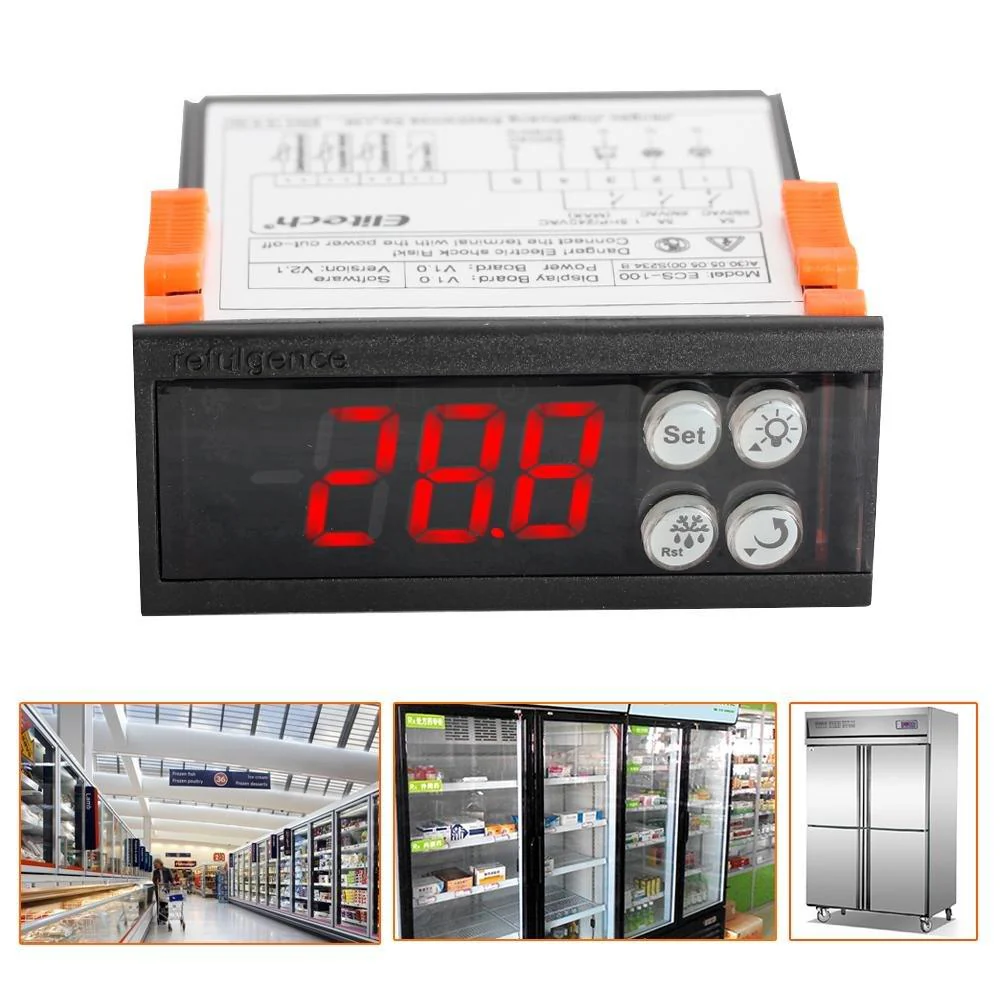

The main purpose of ECS-16 is to control the temperature of beverage cabinets. Therefore, we set its wiring port as a quick-connect port to facilitate the production and after-sales of professional equipment manufacturers. It is also suitable for freezers, refrigeration, seafood machines, and water heaters.
One-way sensor input: temperature probe sensor.
One-way control output: refrigeration/ heating equipment.
Elitech ECS-16 Function
| Model | Control Output | Signal Input | Other | ||||||||
| Refrigeration/ Heating (30A) | Temperature Sensor | Buzzer | Over-temperature Alarm | ||||||||
| ECS-16 | √ | √ | √ | √ | |||||||
Parameter
| Model | ECS-16 |
| Operating Voltage | 220VAC±10%; 50/60Hz |
| Overall Power Consumption | <3W |
| Temperature Measurement Range | -50℃～90℃ |
| Temperature Control Range | -50℃～85℃ |
| Temperature Measurement Accuracy | ±1℃(-40℃～50℃), Others ±2℃ |
| Display Resolution | 1℃ |

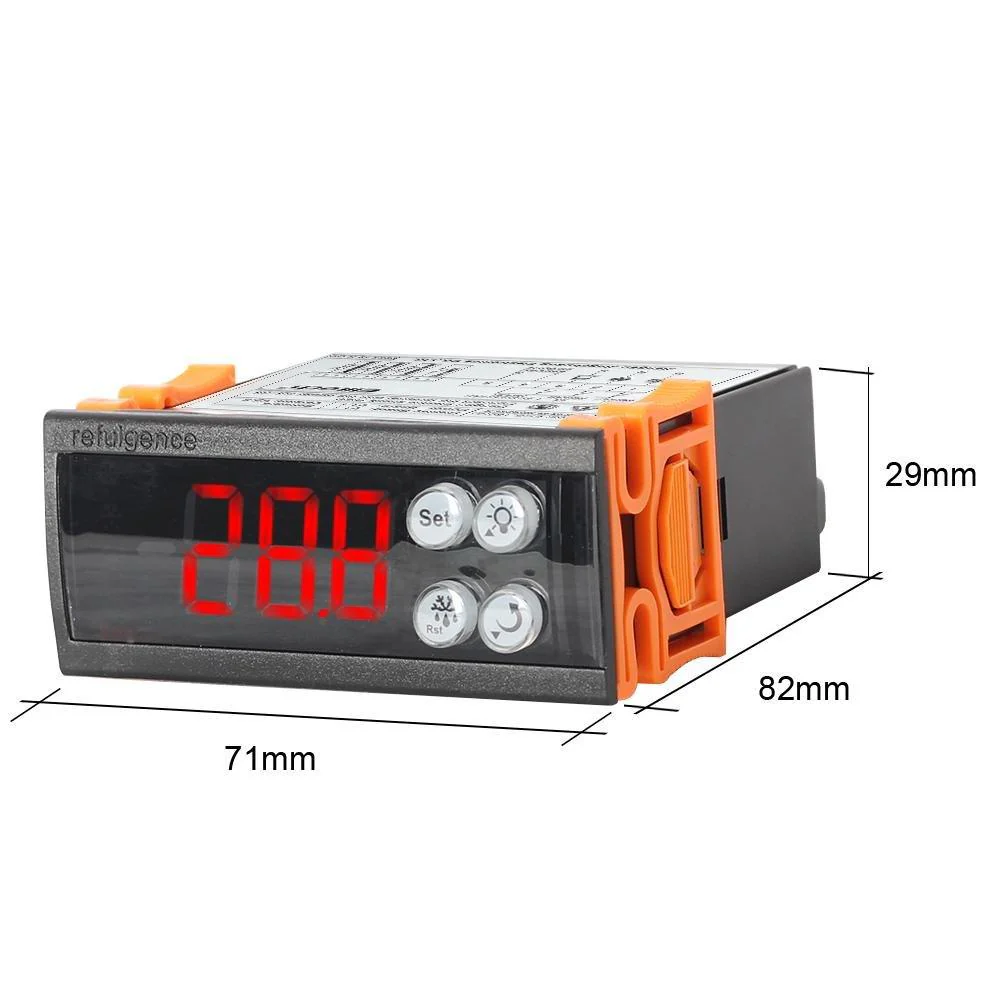

| Product Size | 78.5×34.5×78.5（mm） |
| Mounting Dimension | 71×29 (mm) |
| Rated Current of Output Relay (Refrigeration/ Heating) | 30A/240VAC |
Elitech One-Way Output Temperature Controller Comparison
| Function | Model | Rated Current of Output Relay | Input | Others | |
| Temperature Sensor | Defrost Sensor | ℃/℉ | |||
| Refrigeration | STC-8000HX | 10A | √ | / | / |
| ECS-11 | 30A | √ | / | √ | |
| Refrigeration/Heating | ETC-902 | 8A | NTC/NPC | / | √ |
| EK-3010 | 10A | √ | / | / | |
| ECS-02CX | 10A | √ | √ | √ | |
| ECS-961neo | 17A | √ | / | / | |
| ECS-16 | 30A | √ | / | / | |
| Refrigeration/Heating/Alarm | STC-200 | 10A | √ | / | / |
Elitech ECS-16 Related Documents
- Elitech ECS-16 Temperature Controller Thermostat User Manual
-
Elitech ECS-16 Temperature Controller Thermostat CE Certification
Original: $31.14
-65%$31.14
$10.90More Images
