Elitech STC-1000Pro Temperature Controller Thermostat Automatic Switch Cooling and Heating, Prewired - Just Plug and Play, Wall-mounted
Elitech STC-1000Pro Temperature Controller Thermostat Automatic Switch Cooling and Heating, Prewired - Just Plug and Play, Wall-mounted
Elitech STC-1000Pro temperature controller thermostat can automatically change over between cooling and heating. It features pre-wired cooling and heating output sockets that can achieve “just plug and play “. Compared to the traditional thermostat that requires wiring, it is more convenient and safer to use, and it can be operated by people without any electrical foundation. It controls the temperature according to the temperature set value and the return difference.
With temperature measurement, temperature display, temperature control, temperature calibration, sensor fault alarm, over-temperature range alarm, compressor protection delay functions. It also has the function of Fahrenheit and Celsius conversion.
One-way sensor input: temperature probe sensor;

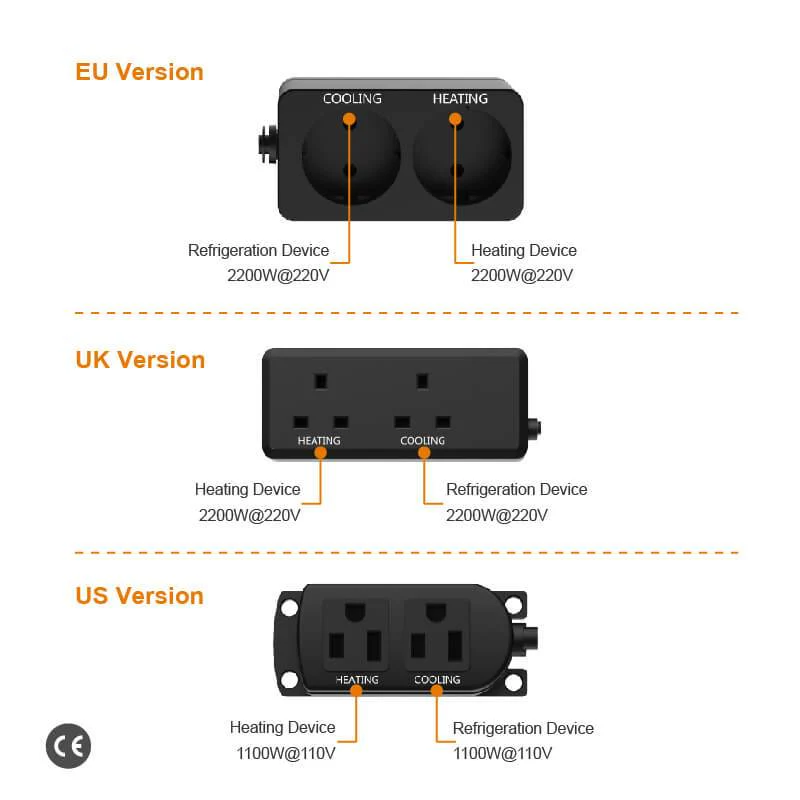

Two-way control outputs: heating output socket (10A), cooling output socket (10A).
Elitech STC-1000Pro temperature controller thermostat with UK/EU/US version can be widely used in areas that need automatic temperature controls such as snake rack, homebrew, pet breeding, seeding heat mat, aquarium, seafood machine, aquaculture, hatchery/incubator farming, greenhouse planting, brew, ferment, fridge, freezer, slow cooker, etc.
Parameter
| Power supply | 100-250VAC, 50/60HZ |
| Total power consumption | 5W |
| Temperature measuring range | -45 - 115℃/-49 - 239℉ |
| Temperature control range | 40-110℃/-40~230℉ |
| Temperature resolution | 0.1℃/1℉ |
| Temperature accuracy | ±1℃/±2℉ |
| Operating ambient temperature | -10℃~ˇ65℃ |
| Storage temperature | -20℃~75℃ |
| Relay contact capacity | 10A /100~250V AC |
| Sensor type | NTC Temperature Sensor(10KQ/ 25°C, B value=3435K) |
| Working mode | Heating or Cooling |
| Cable length(Sensor) | 2m |
| Cable length(Power plug) | 1.5m |
| Cable length(Heating/Cooling Outlet) | 0.3m |

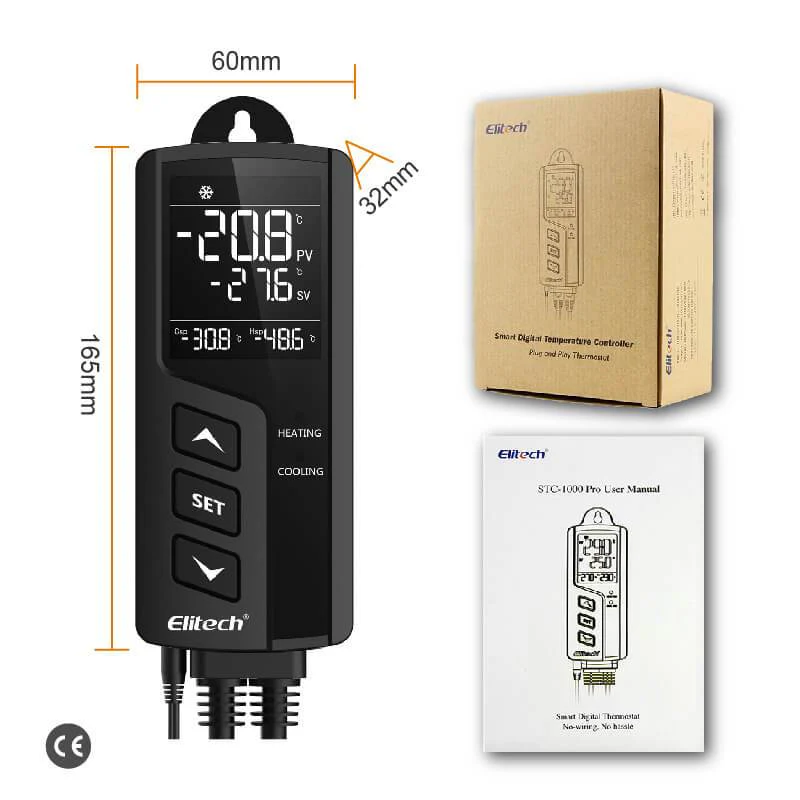

| Dimensions | 265mmx167.5mm |
| Best LCD screen viewpoint | 6 o'clock position |
Feature
 |
 |
 |
|

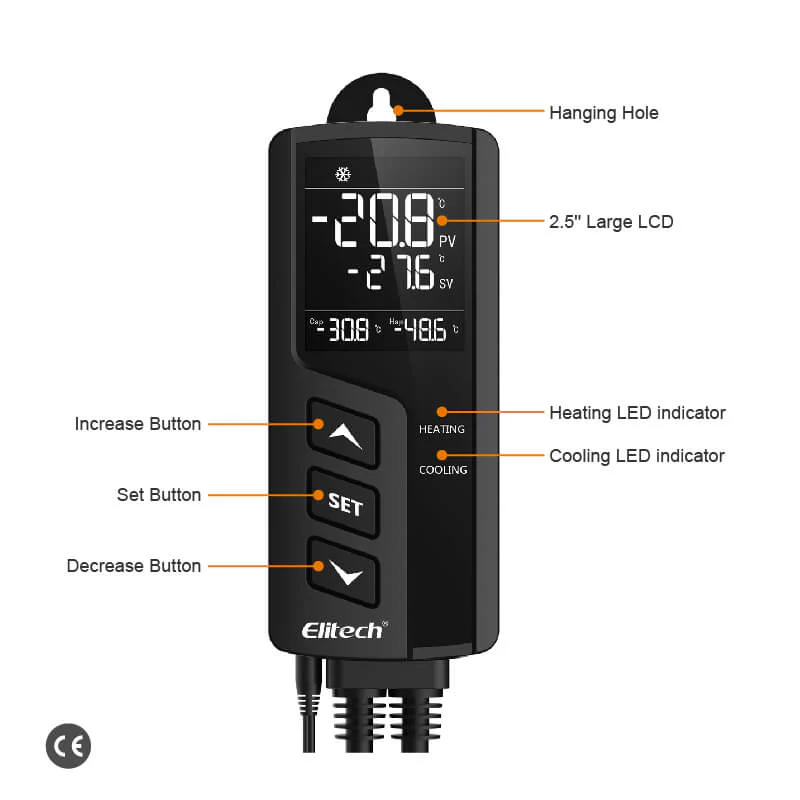

Plug and Play, Easy to Use* Simple 3-key and pre-wiring design, just plug and play |

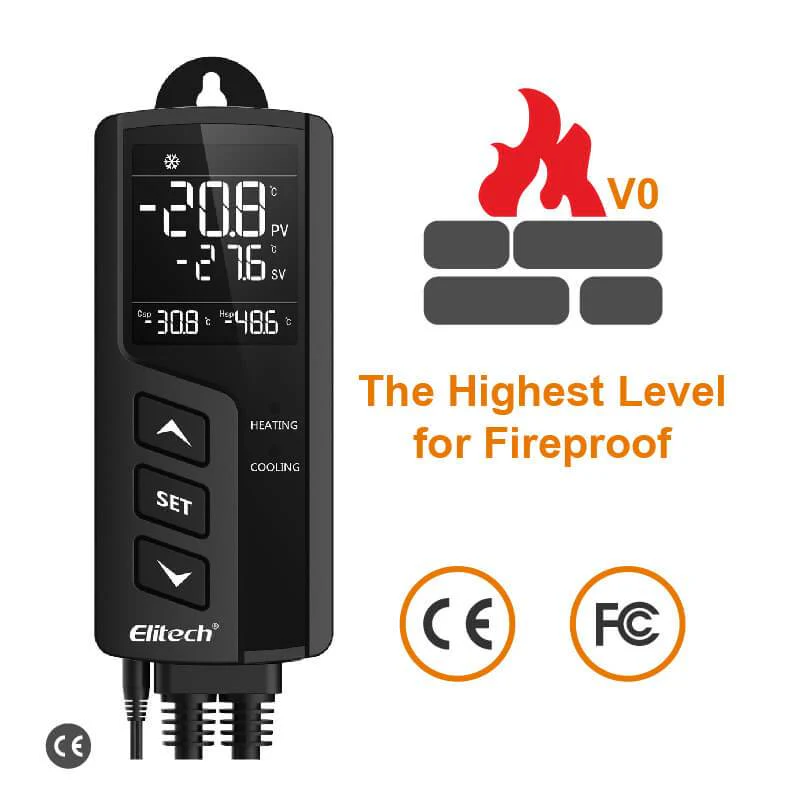

Safe and Reliable* Comply with CE and FCC standards, use PC+ABS flame-retardant shell, UL94 V-0 safety level (The highest level for fireproof) |
Dual Relay Output* The two pre-wired heating and cooling output sockets allow you to control one single heating device, or one single cooling device, or both simultaneously. |
 |
 |
 |
|
Multiple Functions* Setting high or low alarm clock, startup delay, temperature calibration, ℃ / ℉, etc. |
Wide Temperature Range, More Widely Use* The temperature control range is 40-110℃/-40~230℉. Start cooling or heating according to the set parameters to help maintain the required temperature at any time |

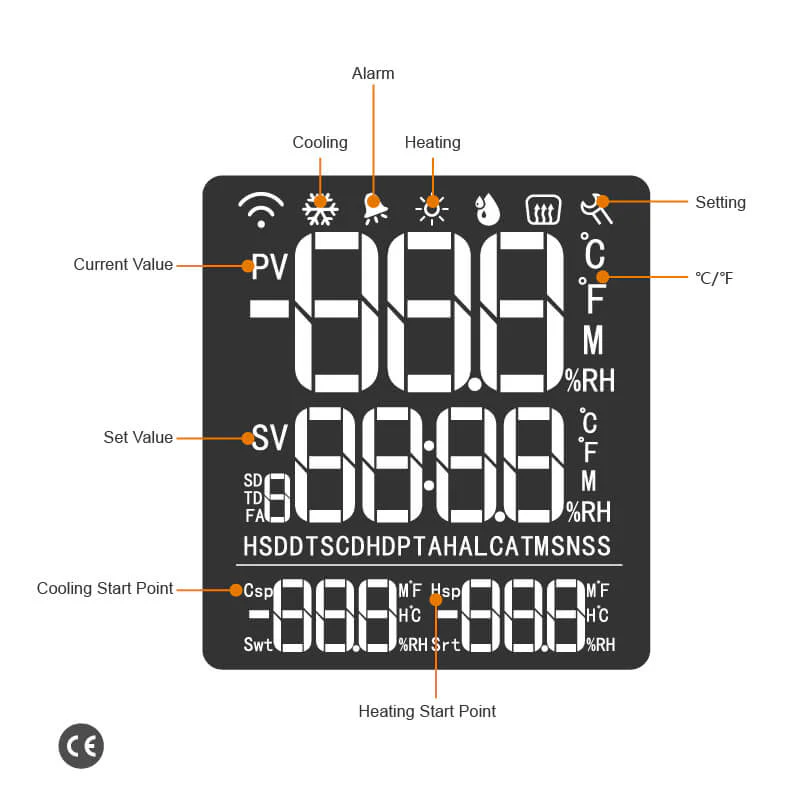

Clear Parameter Display* 2.5'' LCD large screen gives intuitive temperature viewing and parameter setting |
Operation
Comparison
Elitech STC-1000Pro Related Documents
- Elitech STC-1000Pro Temperature Controller Thermostat User Manual
- STC-1000Pro Temperature Controller Thermostat CE Certification
